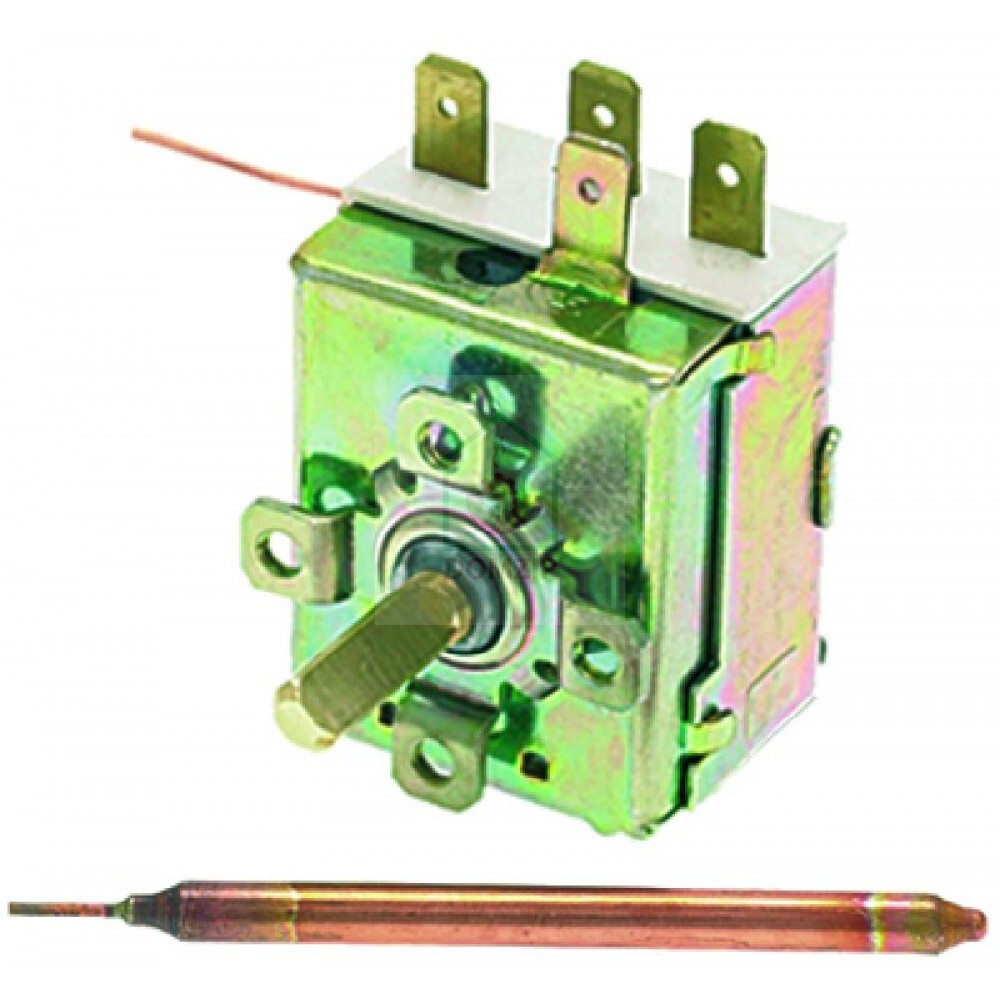

Термостат однофазный TR2 0-90C MODULAR (461.003.00)
Характеристики:
TYPE TR2 9335
температура макс.: 90 °C
число полюсов: 1 -pole
функция: 1CO
переключающая мощность: 16 А
диаметр датчика: 6,5 мм
длина датчика: 110 мм
длина капиллярной трубки: 1500 мм
длина капиллярной трубки отдельно: 1450 мм
диаметр оси: 6x4,6 мм
длина оси: 19 мм
положение оси: +135°
угол поворота: 270 °
Альтернативные коды:
32Z8840 - ANGELO PO
20314 - ASTORIA CMA
2080 - ATA
1080 - ATA
34LS009 - ATEL
0929044 - BARTSCHER
13/29 - CAMPEONA
050B0231 - CAMURRI
050B0231+... - CAMURRI
63.7.0658 - CF CENEDESE
929044 - COLGED
DRT13 - COLGED
DRT13L - COLGED
DAT11 - COLGED
120501 - COMENDA
929044 - DEXION
DRT13L - DEXION
929044 - ELETTROBAR
DRT13L - ELETTROBAR
DRT13 - ELETTROBAR
DAT11 - ELETTROBAR
1610110 - EPMS
390399 - GEV
E929044 - HOBART
H120501 - HOONVED
120501 - HOONVED
540350 - IMIT
540350/D - IMIT
103340 - KRUPPS
3264000 - LASA
3251 - LASA
3618 - LASA
A030067 - LINEA BLANCA
461.003.00 - MARELS
929044 - MBM
DRT13 - MBM
DRT13L - MBM
DAT11 - MBM
461.003.00 - MODULAR
ED001 - OEM
208418 - PALUX
CETB85 - RADA
25304008 - REPAGAS
32Z8840 - SAGI
03205 - SICOMEX
B38 - SOCOLMATIC
40/07050000 - STAFF ICE SYSTEM
10950057000 - TECNOEKA
01201430 - TECNOEKA
901017 - THIRODE
WY20314 - WEGA
3444004 - LF
Подходит для моделей:
ANGELO PO:
LF50E, LF50E VERS 12-2012, LF50E VERS 2007, LF50EM, LF50EM VERS 12-2012, LF50EMPS, RC
C304AVD, C304AVS, N303D, N303S, N303VD, N303VS, N354D, N354S, N354VD, N354VS, N506D, N506S, N506VD, N506VS, N607D, N607S, N607VD, N607VS, N760D, N760S, N760VD, N760VS, N886D, N886S, N886VD, N886VS
C165D, C165S, C165VD, C165VS, C207D, C207S, C207VD, C207VS, C304AD, C304AD VERS 2006, C304AS, C304AS VERS 2006, C304AVD VERS 2006, C304AVS VERS 2006, C304D, C304D VERS 2006, C304S, C304S VERS 2006, C304VD, C304VD VERS 2006, C304VS, C304VS VERS 2006, CS243D, CS243D VERS 2006, CS243S, CS243S VERS 2006, CS243VD, CS243VD VERS 2006, CS243VS, CS243VS VERS 2006, CS370AD, CS370AD VERS 2006, CS370AS, CS370AS VERS 2006, CS370AVD, CS370AVD VERS 2006, CS370AVS, CS370AVS VERS 2006, CS370D, CS370D VERS 2006, CS370S, CS370S VERS 2006, CS370VD, CS370VD VERS 2006, CS370VS, CS370VS VERS 2006, CS466AD, CS466AD VERS 2006, CS466AS, CS466AS VERS 2006, CS466AVD, CS466AVD VERS 2006, CS466AVS, CS466AVS VERS 2006, CS466D, CS466D VERS 2006, CS466S, CS466S VERS 2006, CS466VD, CS466VD VERS 2006, CS466VS, CS466VS VERS 2006, TA12C, TA12C VERS 2006, TA9C, TA9C VERS 2006
LT10R, LT20F, LT25F
LP124, LP124 VERS 05-2006, LP124S VERS 05-2006, LP124V, LP124V VERS 05-2006, LP124VS VERS 05-2006, LP84, LP84 VERS 05-2006, LP84S VERS 05-2006, LP84V, LP84V VERS 05-2006, LP84VS VERS 05-2006
ARISTARCO:
AC 20, AC 25, AC 26, AE 35.21, AE 38.25, AE 40.29, AE 40.30, AE 45.30, AE 50.32, AE 50.35, AE 50.35 H, AL 55.45 EM/P, AP 35.21, AP 35.21 D.A., AP 38.25, AP 38.25 D.A., AP 40.28, AP 40.28 D.A., AP 40.29, AP 40.29 D.A., AP 40.31, AP 40.31 D.A., AP 45.30, AP 45.30 D.A., AP 50.32, AP 50.32 D.A., AP 50.35, AP 50.35 D.A., AP 55.40, AP 55.40 D.A., EURO 380, EURO 500, GL 7.40 E.M., GL5.34, GL7.38, LP 125-80, LP 55-65, LP 55-80, PASSPORT 45.30, PASSPORT 50.32
AE 1000, AE 1200, AH 1000, AH 1000 EASY, AH 1100, AH 1200, AH 800, AH 800M, AL 1200 E, AL 1500 E, AP 1000, AP 1200, GL 1040, GL 1240, GL 8.50 E, GL 8.50 E.M.
TR 1200, TR 1650, TR 1650 N, TR 2000, TR 2500, TR 3000, TR 3500, TR 4000, TR 5000, TRC 250, TRR 2500
AL 40.28 E, AL 40.28 EM, AL 45.32 E, AL 45.32 EM, AL 50.34 E, AL 50.34 EM, AL 50.40 E, AL 50.40 EM, AL 55.45 E, AL 55.45 E/P, AL 55.45 EM, ALISEO 40.28 E, ALISEO 45.32 E, AS 40.31, AS 40.31 D.A., AS 50.35, AS 50.35 D.A., AS 50.35DGT-DA, AS 50.35E-DA, AS 55.40, AS 55.40 D.A., AU 125-80, AU 55-65, AU 55-80, AU 65-65, AU-P 55.40, AU-S 55.40, AW 40.28, AW 45.32, COMPACT 20, EURO 350, EURO 400, GEMINI CF, GEMINICR, MINIBARCF, MINIBARCR, PASSPORT 35.21, PASSPORT 38.25, PASSPORT 40.28, PROGRAM 25 CF, PROGRAM 25 CR, PROJECT28, SELF4.32, SELF400
LP 65-65, LP 85-65
ASTORIA CMA:
CK, CKE, CKX, CKXE, SIBILLA
ATA:
AF61, AF61D, AF61DPS, AF61PS, AF61PSW, AF61W, AF73, AF73PS, AF78, AF78D, AF78DPS, AF78PS, AF78PSW, AF78W, AF83, AF88, AL50, AL50PS, AL60, AL60PS, ALP42P, AT900PRP, ATR311ED
AT105, AT106, AT110, AT900, AT95, AT96
ALC100, ATR161, ATR161ED, ATR161ES, ATR221, ATR221ED, ATR221ES, ATR311, ATR311ES
AL10, AL15, AL20, AL25, AL30, AL31, AL35, AL36, AL40, AL41, AL45, AL46
ALP01, ALP01G, ALP02, ALP02G, ALP33, ALP42
BONNET:
INO 61, INO-36-A
CF CENEDESE:
VEC-510, VEC-520, VEN-520
SA30, SA50
COLGED:
LN120, LN180, LN70, LT121, LT151, LT202, LT91, PL109, PL112, PL114, PL215, PL220
COMENDA:
ECOTEMP LO, F20, F45, F55, F65, F80, F90MA, FC53CBT, FC53LBT, FC54CBT, FC54LBT, LF280, LF320, LF320CBT, LF320LA, LF320LBT, LVP1502
GMC2700, GMC2702 ECO2, GMC3500, GMC3502 ECO2, GMC4500, GMC4502 ECO2, GMC5500, NE1, NE1P6, NE21P12, NE21P6, NE21P9, NE22P12, NE22P9, NE3001, NE31P12, NE31P6, NE31P9, NE32P12, NE32P9, NE33P12, NE4001, NE5501, NE7501, NE9001, NL302, NL302E, NL402, NL402E, NL502E, NL552, NL552E
C1000ERCD, C1000ERCD CRC2, C1300ERCD, C140, C155, C155RCD, C165, C165E2RCD, C30, C33, C34, C70, C75, C85, C95, C95RCD, CL70, ECOTEMP11, LC1200, LC380, LC380RCD, LC400, LC700, LC900, LC900MCRC, LP360
AC100, AC101, AC105, AC120, AC122, AC135, AC150, AC151, AC152, AC170, AC181, AC182, AC200, AC201, AC202, AC241, AC242, AC2A, AC2AEP5, AC2AEP6, AC2AEP9, AC2AP, AC2E, AC2E2L-P6A, AC2EA, AC2EP5, AC2EP6, AC2EP9, AC2P, AC3 20, AC3 20A, AC3 25, AC3 25A, AC3 30, AC3 30A, AC3 35, AC3 35A, AC3 40, AC3 40A, AC3 45, AC3 45A, AC90, AC91, AC95, ACC2B, ACC2C, ACC3B, ACCS151, ACCS251, ACCS351, ACL100, ACL150, ACR, ACR145, ACR205, ACR225, ACR245, ACR260, ACR265, ACR305, ACRS145 ECO2, ACRS205, ACRS225 ECO2, ACRS260 ECO2, ACRS305 ECO2, ACS101, ACS122, ACS151, ACS152, ACS161, ACS162, ACS181, ACS182, ACS201, ACS202, ACS241, ACS242, ACS91, LAV1000, LAV1001, LAV1501, LV1001, LV1501, LVP1001, LVP1501, RT200, SNL
B10T, B11T, B12T, B13T, B14T, B15T, B15TM, B16T, B16TM, B18T, B18TM, B19T, B19TM, BC25, BC25A, BC30, BC30A, BHC25, BHC25A, BHC25S, BHC30, BHC30A, BHC433, BHC433A, BR20, BR20A, BR25, BR25A, ECOTEMP 6, FC43, FC43A
F90M, G100L, G101L, G115, G115L, G125, G125L, G50L, G50LM, G51L, G60L, G61L, G65, G65L, G75, G75L, GE1005RCD, GE1005RCD CRC, GE1255RCD, GE1255RCD CRC, GE605RCD, GE605RCD CRC, GE755RCD, GE755RCD CRC, GE805RCD, GE805RCD CRC, GF90, GF90A, GFS90, GFS90A, NG601E, NG901, NG901E
NG601
ELETTROBAR:
114, 12, 14, 161, 221, 271, 272, 362, 9, CLEAN160, CLEAN220, CLEAN221, CLEAN270, CLEAN271, CLEAN272, CLEAN361, CLEAN362, CLEAN471
CLEAN161
HOONVED:
EDT100, EDT140, EDT170, EDT200, EDT230, EDT85, TR100, TR140, TR170, TR200, TR230, TR90, TR-E100, TR-E150, TR-E170, TR-E200, TR-E230, TR-E90
EDI15
KRUPPS:
COMPACK B40, COMPACK B43, COMPACK B43DB, COMPACK B46, COMPACK B48, COMPACK B53, COMPACK B55, COMPACK S65, COMPACK S85, KORAL 1100, KORAL 500, KORAL 540DB, KORAL 600, KORAL 800
COMPACK TM1400, KORAL ES 50
COMPACK S130, COMPACK S140, COMPACK S150, COMPACK S155, COMPACK S160, COMPACK S165, KORAL 1200, KORAL 1250, KORAL 1300, KORAL 1350, KORAL 1600, KORAL 1600DB, KORAL 1650, KORAL 1650DB
KORAL 205, KORAL 206, KORAL 207, KORAL 208, KORAL 208 LS, KORAL 209, KORAL 210, KORAL SR400
LASA:
LB352
LINEA BLANCA:
LC140, LC-1500, LC-1700, LC2000, LC-2000, LC2300, LC-2300, LC2300TR, LC-2300TR, LC2600, LC-2600, LC2800, LC-2800, LC80
LC-3800, LC-4200
LC-1000, LC-140, LC-80
MBM:
114, 12, 14, 161, 221, 271, 272, 362, 9, LT121, LT151, LT202, LT91
OEM:
S109, S111, S66, S69, S77, S96, S99, SE109, SE111, SE66, SE69, SE77, SE96, SE99
SAMMIC:
P-50, S-290, S-350, S-550, S-750, S-750A, SB-290, SB-350, SB-550, SB-750, SB-750A, SL-1100BP, SL-23, SL-23B, SL-23BP, SL-290B, SL-300, SL-350B, SL-550B, SL-550BP, SL-800B, SP-23, SP-23B, SP-290, SP-350, SP-550, SP-550B, SP-800, SV-18
E-1000, LV-1100, LV-1200, SC-1100, SC-1200, SL-1100, SL-1100B, SL-1200, SL-1200B, SL-1200BP, SL-900
ST
E-18, E-19, LVT-18, LVT-18A, LVT-18H, P-35, P-41, S-20, S-21, S-23, SB-22, SB-23, SL-18, SL-19, SL-19D, SL-20, SL-21, SL-21B, SV-18H, SV-19, SV-20, SV-21, SV-21B
TECNOEKA:
EKF411, EKF411D, EKF464, EKF464.3D, KF620 GRILL, KF620IX GRILL, KF630UD
EKL 1264, EKL 1264R, EKL 823, EKL 864, EKL 864R, KL 823, KL 898
THIRODE:
VSL-450
WEGA:
POLARIS, VENUS
